Steel 5120 Hard Chrome Plated Piston Pin
Steel 5120 Hard Chrome Plated Piston Pin

Steel 5120 Hard Chrome Plated Piston Pin

Steel 5120 hard chrome plated piston pinThe piston pin is made of steel 5120, quenched and tempered to HRC 33-38, then plated with hard chrome.We need to grind the piston pins twice, before and after the hard chrome plating, in order to meet the tight tolerance on the OD.Part specificationsMaterialSteel AISI 5120 (GB Cr20)Size (mm)OD 35 x Length 130Tolerance for key dimension (mm)0/-0.007mm on the ODRoughnessRa0.16-0.32 umCoating:Hard chrome plating 0.08-0.12mm thickProcessesCNC turning, centerl

Views

Views

Steel 5120 Hard Chrome Plated Piston Pin

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

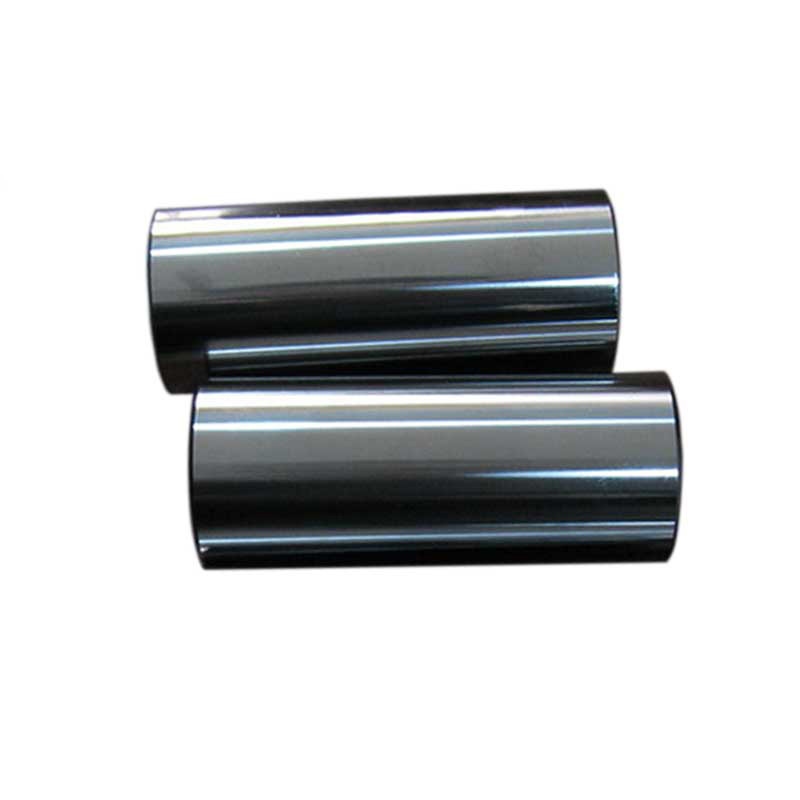

Steel 5120 hard chrome plated piston pin

The piston pin is made of steel 5120, quenched and tempered to HRC 33-38, then plated with hard chrome.

We need to grind the piston pins twice, before and after the hard chrome plating, in order to meet the tight tolerance on the OD.

Part specifications

MaterialSteel AISI 5120 (GB Cr20)
Size (mm)OD 35 x Length 130
Tolerance for key dimension (mm)0/-0.007mm on the OD
RoughnessRa0.16-0.32 um
Coating:Hard chrome plating 0.08-0.12mm thick
ProcessesCNC turning, centerless grinding

No comment

Prev：Big custom drive shaft with flat key and OD ground Next：Tr36X6 Screw Shaft and Nut for Lawn Maintenance Machine
Product Detail


Steel 5120 hard chrome plated piston pin

The piston pin is made of steel 5120, quenched and tempered to HRC 33-38, then plated with hard chrome.

We need to grind the piston pins twice, before and after the hard chrome plating, in order to meet the tight tolerance on the OD.

Part specifications

MaterialSteel AISI 5120 (GB Cr20)
Size (mm)OD 35 x Length 130
Tolerance for key dimension (mm)0/-0.007mm on the OD
RoughnessRa0.16-0.32 um
Coating:Hard chrome plating 0.08-0.12mm thick
ProcessesCNC turning, centerless grinding
