plastic lens retainer for smartphone cameras
plastic lens retainer for smartphone cameras

plastic lens retainer for smartphone cameras

This is a plastic lens retainer for smartphone cameras, which is installed under the back cover of the phones. These parts are produced by 2 shot injection molding, with the substrate PA6+GF and TPU overmolded.Part specification:MaterialPA6 GF. TPUDimensions39*12.6mmNet weight0.83 gramManufacturing process2-shot moldingMold information2 molds, 16 cavities eachMold typehot runnersCritical features:The key dimensions are within the tolerance of ±0.05mm；The flatness and parallelness of surfaces are

Views

Views

plastic lens retainer for smartphone cameras

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

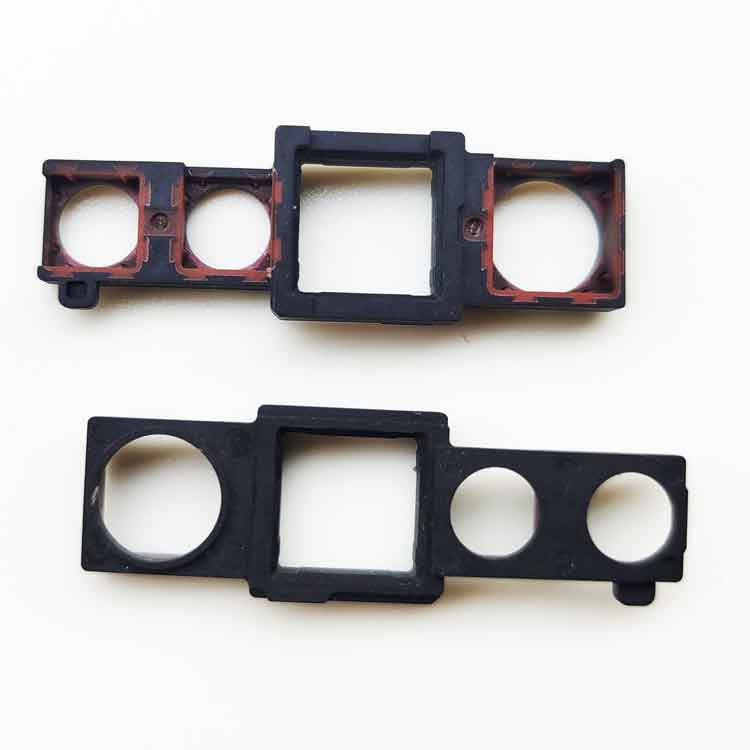

This is a plastic lens retainer for smartphone cameras, which is installed under the back cover of the phones. These parts are produced by 2 shot injection molding, with the substrate PA6+GF and TPU overmolded.

plastic retainer for phone lens

Part specification:

MaterialPA6 GF. TPU
Dimensions39*12.6mm
Net weight0.83 gram
Manufacturing process2-shot molding
Mold information2 molds, 16 cavities each
Mold typehot runners

Critical features:

  • The key dimensions are within the tolerance of ±0.05mm；

  • The flatness and parallelness of surfaces are within 0.06mm;

  • No burrs or bumps allowed;

  • The gate scar should be under the part surface

Very small details:

The overmolded layer of TPU is only 0.4-1mm thick, and there are many small V-slots to further secure the overmolded layer from coming apart. Many small details need to be made precisely according to the design.

phone lens retainer small details

High precision of the molded parts:

To allow the parts function properly with the lens, these parts need to be made flat and with the minimum bend, warpage or distortion.

phone lens retainer picture 3phone lens retainer picture 5phone lens retainer picture 4

No comment

Prev：Plastic Lotion Dispenser Pump Next：2-color plastic thimble
Product Detail


This is a plastic lens retainer for smartphone cameras, which is installed under the back cover of the phones. These parts are produced by 2 shot injection molding, with the substrate PA6+GF and TPU overmolded.

plastic retainer for phone lens

Part specification:

MaterialPA6 GF. TPU
Dimensions39*12.6mm
Net weight0.83 gram
Manufacturing process2-shot molding
Mold information2 molds, 16 cavities each
Mold typehot runners

Critical features:

  • The key dimensions are within the tolerance of ±0.05mm；

  • The flatness and parallelness of surfaces are within 0.06mm;

  • No burrs or bumps allowed;

  • The gate scar should be under the part surface

Very small details:

The overmolded layer of TPU is only 0.4-1mm thick, and there are many small V-slots to further secure the overmolded layer from coming apart. Many small details need to be made precisely according to the design.

phone lens retainer small details

High precision of the molded parts:

To allow the parts function properly with the lens, these parts need to be made flat and with the minimum bend, warpage or distortion.

phone lens retainer picture 3phone lens retainer picture 5phone lens retainer picture 4
